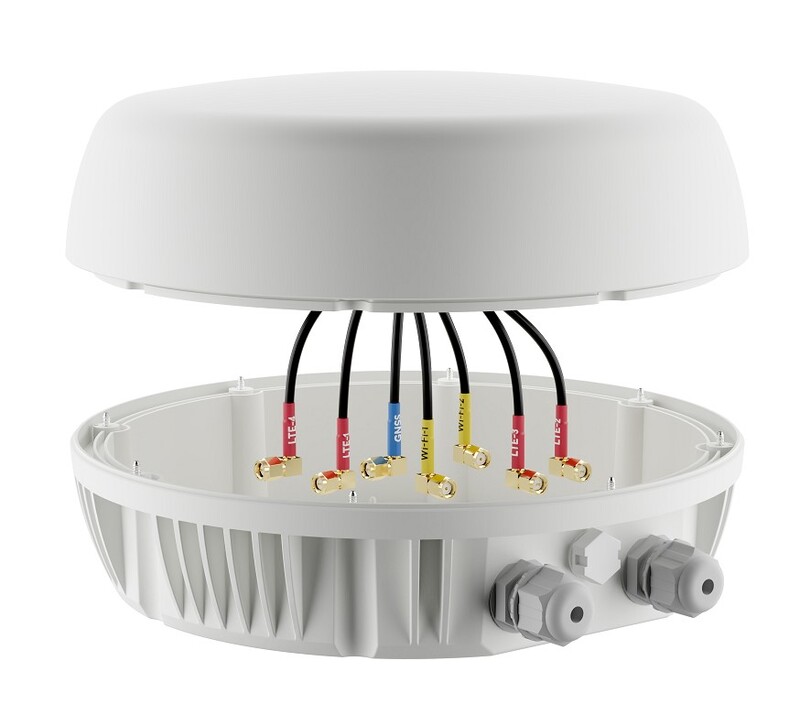

Peplink Antenna MAX Enclosure (SKU: ANT-MAX)

The Peplink Antenna MAX (SKU: ANT-MAX) is an advanced IP67 antenna enclosure engineered to deliver the highest possible cellular, Wi-Fi, and GPS performance by allowing the router to be mounted inside the antenna itself. By eliminating long coaxial cable runs, the Antenna MAX drastically reduces signal loss—enabling maximum 5G/LTE gain even in challenging environments such as rural areas, marine vessels, industrial sites, and public safety deployments.

Constructed from UV-resistant, corrosion-proof materials, the enclosure withstands harsh weather, salt spray, vibration, and long-term outdoor exposure. It provides a clean, integrated solution that combines a multi-element antenna system with a protected router compartment.

Once installed, the Antenna MAX uses a single Ethernet cable to connect back to indoor switches or firewalls, enabling flexible placement and maximum RF performance.

Maximum RF Performance with Minimal Cable Loss

By placing the router directly inside the antenna housing, the Antenna MAX offers:

• True 4×4 MIMO 5G-ready cellular architecture
• 2×2 Wi-Fi antennas for onboard or external Wi-Fi service
• 1× GPS receiver for positioning, fleet tracking & AVL
• Ultra-wideband support across 600–6000 MHz (incl. Band 71)
• Significantly higher signal strength vs. rooftop coax installations

This design provides the strongest, cleanest possible RF path.

Built for Harsh Outdoor & Marine Environments

The enclosure is:

• IP67-rated (waterproof, dustproof)

• UV-stable and corrosion resistant

• Resistant to salt spray & moisture intrusion

• Designed for long-term rooftop or marine mast mounting

Ideal for emergency vehicles, coastal installations, industrial rooftops, RVs, boats, and remote connectivity sites.

Flexible Mounting Options

Supported mounting configurations include:

• Surface mount

• Wall mount

• Pole mount

• Deck mount

The included L-Mount set provides a straightforward installation path for most fixed or mobile setups.

Key Specifications

• Antenna System:

-4×4 MIMO 5G/LTE
-2×2 Wi-Fi
-1× GPS

• Frequency Range: 600–6000 MHz (Band 71 supported)
• Enclosure Rating: IP67 (waterproof, dustproof)
• Housing: UV-resistant, corrosion/salt-resistant composite
• Backhaul: Ethernet connection to network equipment
• Mounting Options: Surface, wall, pole, deck
• Package Includes: Antenna enclosure, L-Mount set
• Use Cases: Public safety, marine, RV, enterprise, rural broadband, fixed wireless
