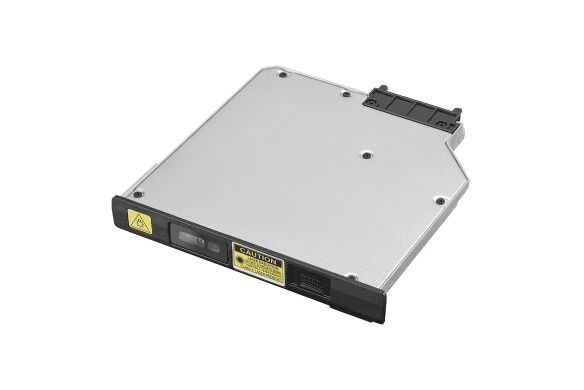

Panasonic FZ-55 xPAK Barcode Reader (SKU: FZ-VBR552M)
The Panasonic FZ-55 xPAK Barcode Reader (SKU: FZ-VBR552M) is a fully integrated 1D/2D scanning module designed for the Toughbook 55 MK2 and MK3. Installed directly into the Left Expansion Area, this module enables fast, reliable barcode capture without the need for external scanners—streamlining workflows for public safety, utilities, warehousing, and mobile field teams.
Featuring the high-performance N6603 imager, the module reads all major symbologies, including QR, PDF417 (driver’s licenses), and DataMatrix. Its built-in trigger button allows one-handed scanning with a default 8-second laser-on window for quick, effortless operation.
Integrated Scanning for Field Productivity
The N6603 imaging engine provides fast decoding for:
• 1D barcodes
• 2D barcodes (QR, PDF417, DataMatrix, etc.)
• Mobile phone & tablet screens
• Damaged or low-quality labels
This level of performance makes it ideal for mission-critical roles such as evidence handling, ID verification, inventory control, and service workflows.
User-Replaceable xPAK With Quick-Release Design
The module fits cleanly into the Toughbook 55 Left Expansion Area and can be:
Removed instantly using the quick-release lever
Secured with a lock-down screw (optional set: FZ-VSW551U, includes 14 screws)
Replaced or upgraded without tools or service depot delays
This modularity supports long-term fleet management and reduces downtime.
Designed for Toughbook 55 MK2/MK3 Compatibility
Made specifically for:
• Toughbook 55 MK2
• Toughbook 55 MK3
It integrates seamlessly with the device’s rugged chassis and maintains all durability standards of the Toughbook platform.
Key Specifications
- Compatibility: Toughbook 55 MK2 & MK3
- Install Location: Left Expansion Area
- Imager: N6603 1D/2D imager
- Trigger: Built-in physical trigger with adjustable timing (default 8 seconds)
- Replaceability: User-replaceable, quick-release lever + optional locking screws
- Supported Codes: 1D, QR, PDF417, DataMatrix, etc.
- Use Case: Public safety, warehousing, utilities, inspections, mobile data collection
